Futura

3-axis Machining center

Helios Futura is a 3-axis CNC machining center suitable for all stone workshops. The FUTURA technology has been studied both for monument/memorial builders and interior design fabricators. Thanks to the sturdy structure, recirculating ball screws and linear guides, it is the best friend for precision and reliability. The finished product is extremely thorough and it doesn’t need any extra hand work. The exclusive Galaxy Stone software, developed by Helios Automazioni’s engineers and running under Windows, guarantees an easy and fast automation of the process.



Monolithic stainless steel structure Thanks to the monolithic stainless steel structure, Helios Futura is sturdy machine, that preserve it's quality over the time;
Precision and reliability The use of recirculating ball screws makes the machine’s movements extremely precise, thus producing highly detailed works;
High-quality electronics The electronic components of Helios Futura have got CE and UL/CSA certifications, important quality indicators;

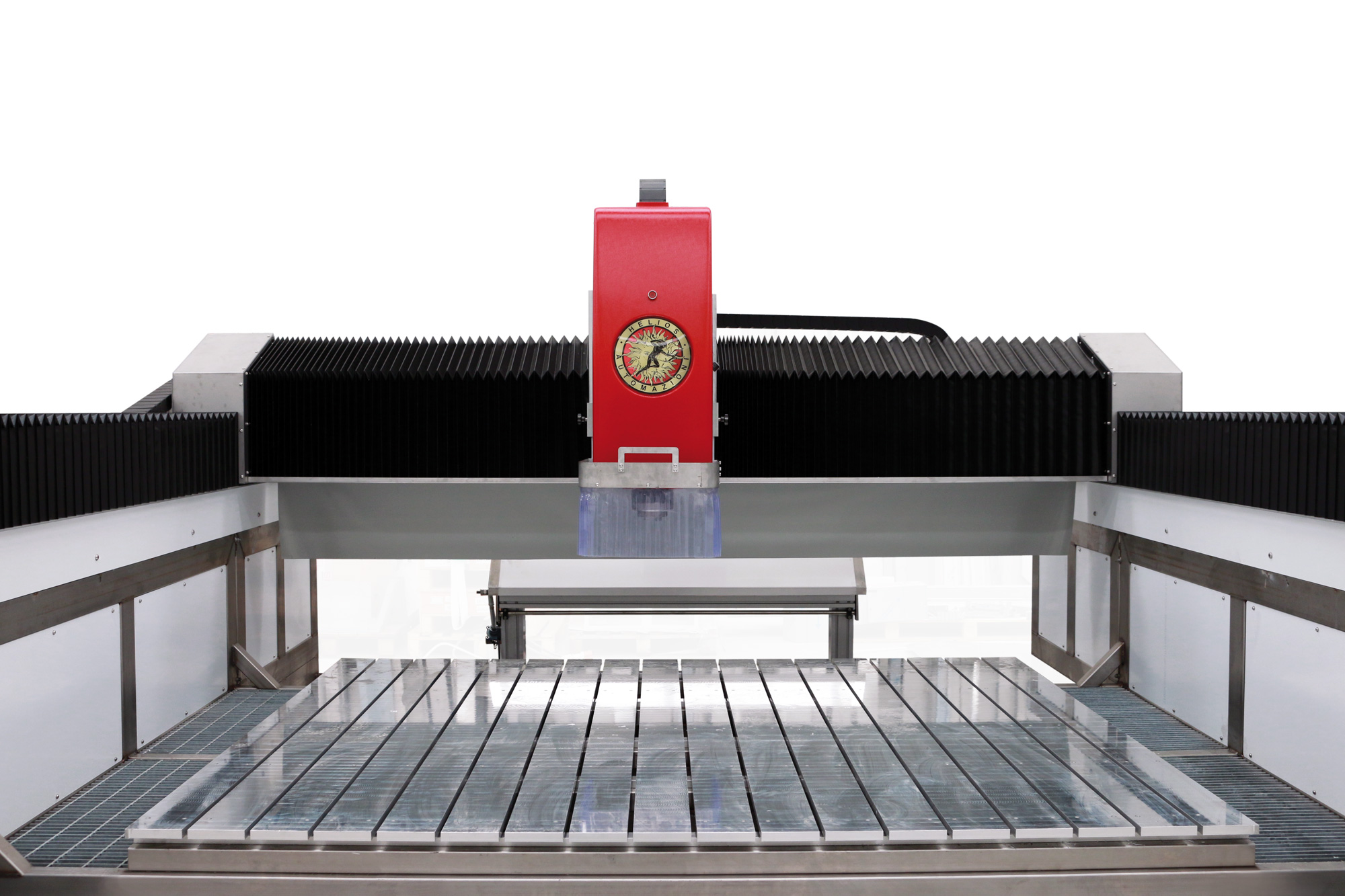

Aluminium rectified table The aluminium rectified table guarantees the integrity of the table and a total resistance to the processes stress and to corrosion. The calibration, performed directly by the machining center, ensures the perfect flatness of the support surface;
Automatic tool change and tools magazine Helios Futura Full e Helios Futura Full XL with automatic tool change manages all the machining center functions. The magazine has got 9 positions for Helios Futura Full and 12 positions for Helios Futura Full XL, that ensure the maximum versatility in the tools choice;
Galaxy Stone software The Galaxy Stone software manages the 3-axis machining center Helios Futura and allows to produce automatically bath and kitchen tops with profiling, inlaid / relief / engraved lettering using all certified Windows fonts, bas-reliefs, frames, 3D floors, and much more;
Sacred art package The sacred art package includes all the applications necessary to process the typical works of the sacred art: inlaid / relief / engraved lettering, sculptural fonts, bas-relief, frames, drilling patterns for bronze letters, 3D floors, all certified Windows fonts, sacred images, and much more;
Tops and drain boards equipment This customization allows to process kitchen and bathroom tops very quickly with an excellent product finishing, thanks also to the integrated section of the software.

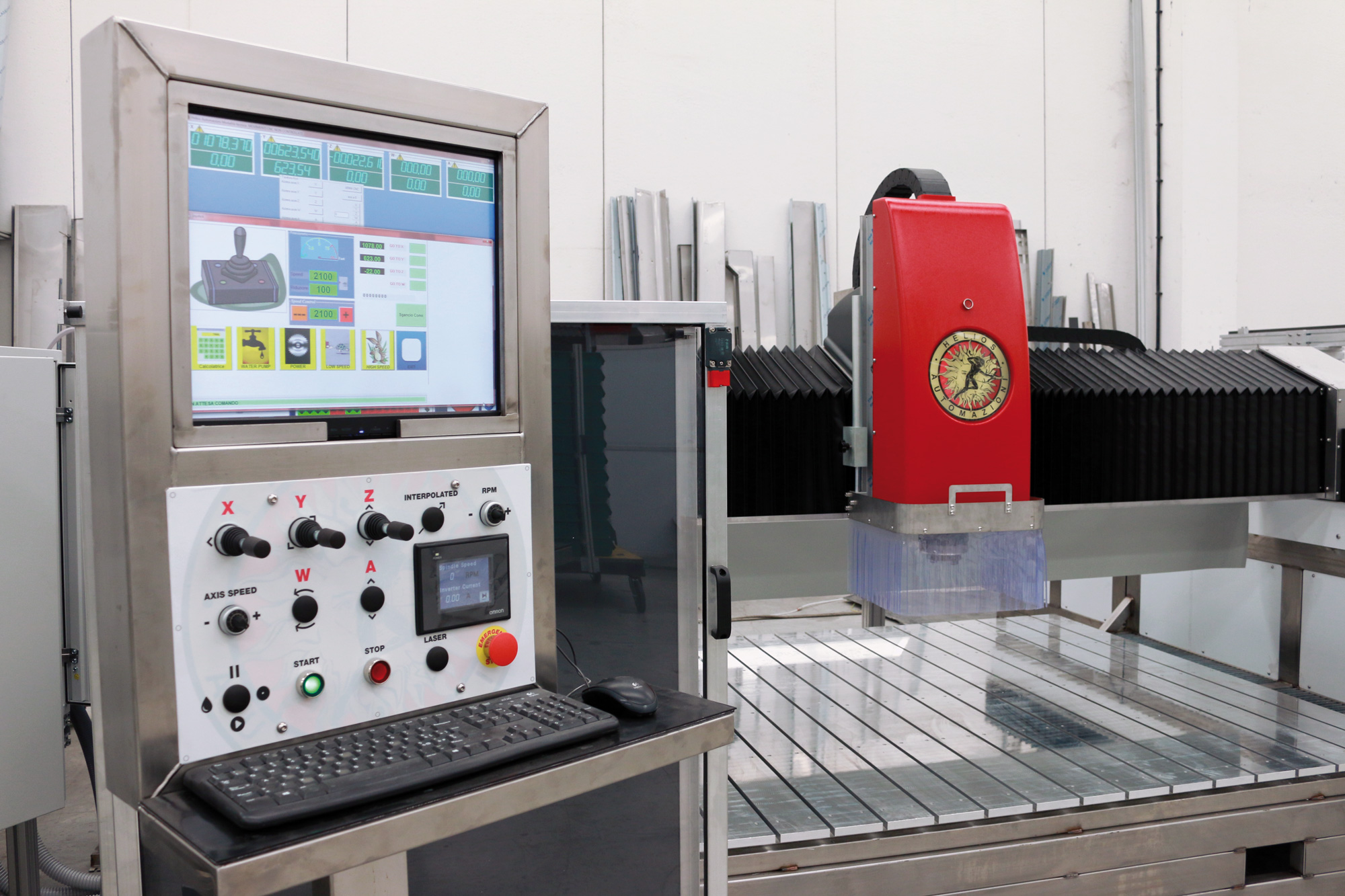

Command consolle The command consolle include everything needed to control the machines: the LCD display, the mouse, the keyboard, the command buttons, and the joystick.
Futura Basic Futura Full Futura XL
Overall dimensions 153,54 x 94,49 x H86,61 in 153,54 x 94,49 x H86,61 in 206,69 x 118,11 x H86,61 in
Working area X92,52 - Y51,18 - Z12,60 in X92,52 - Y51,18 - Z12,60 in X131,89 - Y51,18 - Z12,60 in
Compressed air - Min. 6 bar Min. 6 bar
Power supply 400 V (3P+N+GND) 50/60 Hz 400 V (3P+N+GND) 50/60 Hz 400 V (3P+N+GND) 50/60 Hz
Installed power 6 kW 9 kW 9 kW
Spindle rotation speed 0 - 12.000 RPM 0 - 9.000 RPM 0 - 9.000 RPM
Tool holder 1/2" Gas ISO BT 40 ISO BT 40
Tool change Manual Automatic Automatic
Max working speed 590,55 in/min 590,55 in/min 590,55 in/min
Bridge passing 18,90 in 18,90 in 18,90 in
Water consumption 25 L/min 40 L/min 40 L/min
Net weight 6172,94 lb 6613,87 lb 7716,18 lb
Tank for water recycle Tools resetting and flatness control device
Template reader Explorer laser 3D for model detecting
Inclined draining boards device (only on Helios Futura Full and Helios Futura Full XL version) Laser pointer for the suction cups setup (only on Helios Futura Full and Helios Futura Full XL version)

Fireplaces
Lettering
Frames
Engravings
Inlaying works
Drain boards
Decorative pieces
Sculpturing
Tops

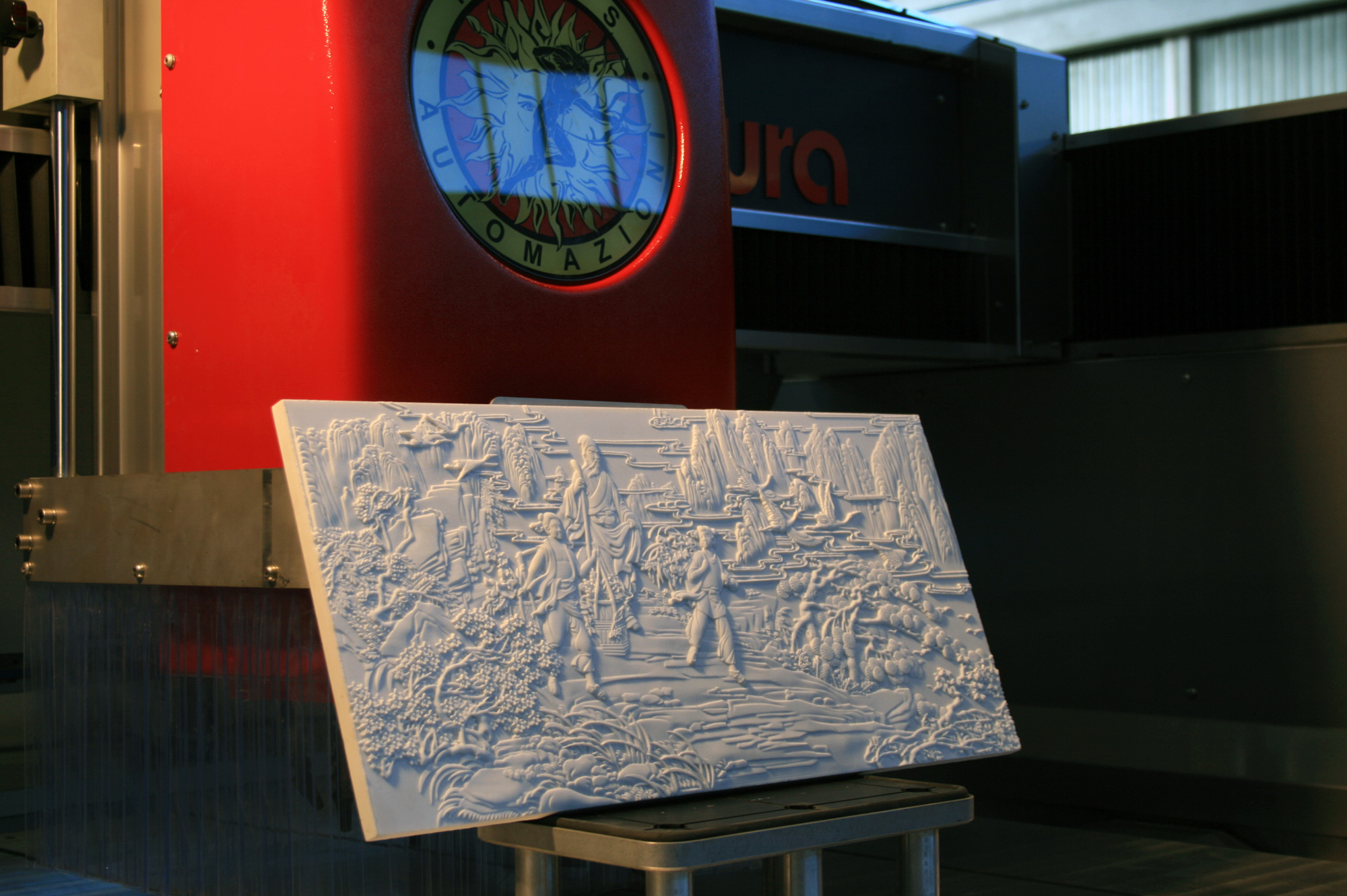

Bas-reliefs
