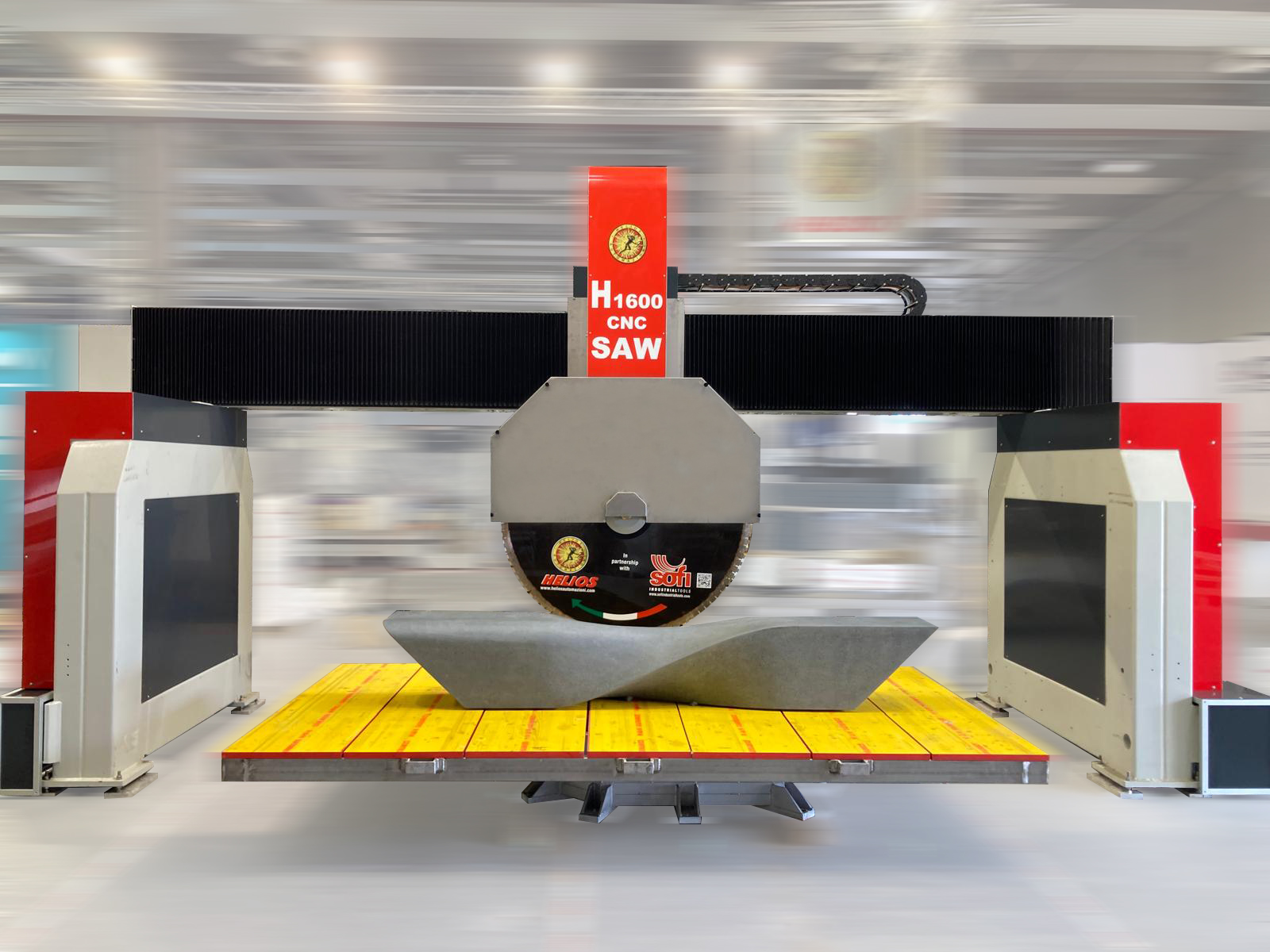

The H1600 has been designed for stone blocks cutting. Thanks to its mobile bridge structure, the machine offers a large working area, ideal for precision machining of large materials. The machine beam is milled carpentry built, stainless steel and anti-corrosion materials covered, to ensure robustness and durability over time, even in hard working conditions. The precision mechanics composed of screws and recirculating ball guides ensures maximum precision both in cutting operations and in complex machining. The H1600 bridge saw can be equipped with the Galaxy Stone software, which allows 3D modelling with the disk, starting from STL. This makes the machine ideal not only for cutting, but also for the creation of complex models and frames. The H1600 can be installed on reinforced concrete walls or on carpentry shoulders, according to the customer’s different structural needs.
• Extreme precise cuts of slabs with different size and thickness.
• Fabrication of bath and kitchen countertops, coverings and decorative walls.
• Artistic works on stone and porcelain materials.
| H 1600 | |
|---|---|
| Working area | X3850 - Y3850 - Z1000 mm | X151,5748 - Y151,5748 - Z82,67 inch |
| Disc motor power | 31,8 kW (optional 42,6kW) |
| Disc motor rotation speed | 0 ÷ 3.800 rpm motor 31,8 kW (0 ÷ 2.400 rpm motor 42,6 kW) |
| Power supply | 400 V (3P + N + GND) 50/60 Hz |
| X-axis stroke | 4000 mm | 157,48 inch |
| Y-axis stroke | 3800 mm | 149,60 inch |
| Z-axis stroke | 1000 mm | 39,37 inch |
| Table dimensions | X3500 - Y2000 mm | X137,79 - Y78,74 inch |
| Disk diameter | max 1600mm | max 62,99 inch |
| Disk hole diameter | 2,36 in (3,14 in motor 42,6 kW) |
| Flange diameter | 11,02in |
