H 800 - H 625

5-axis bridge saws

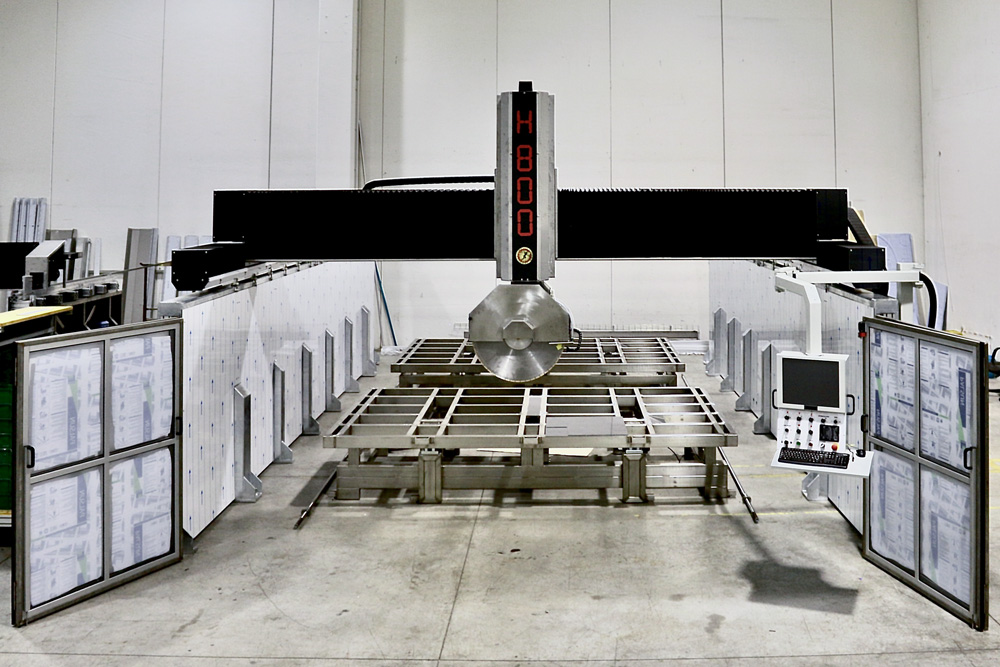

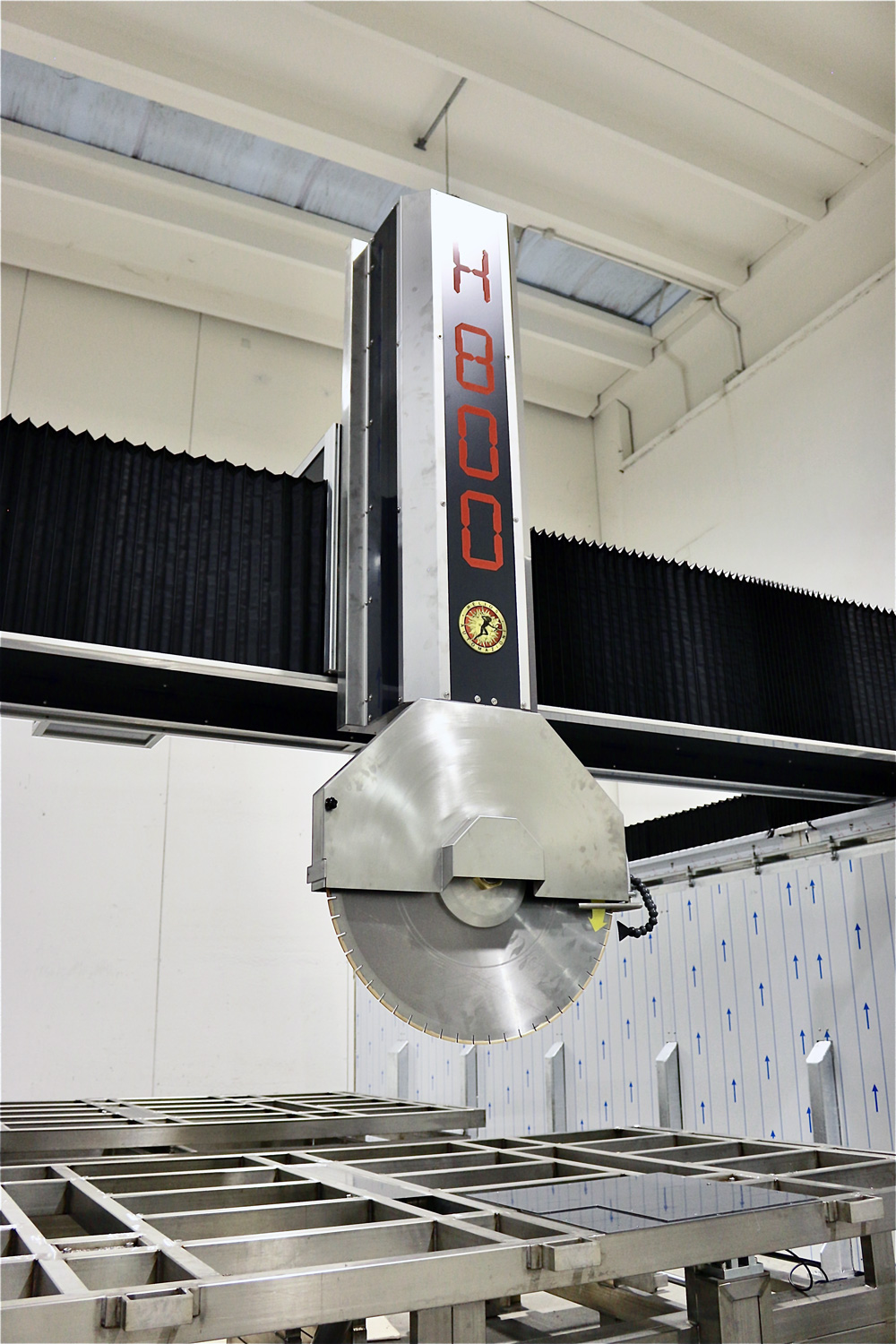

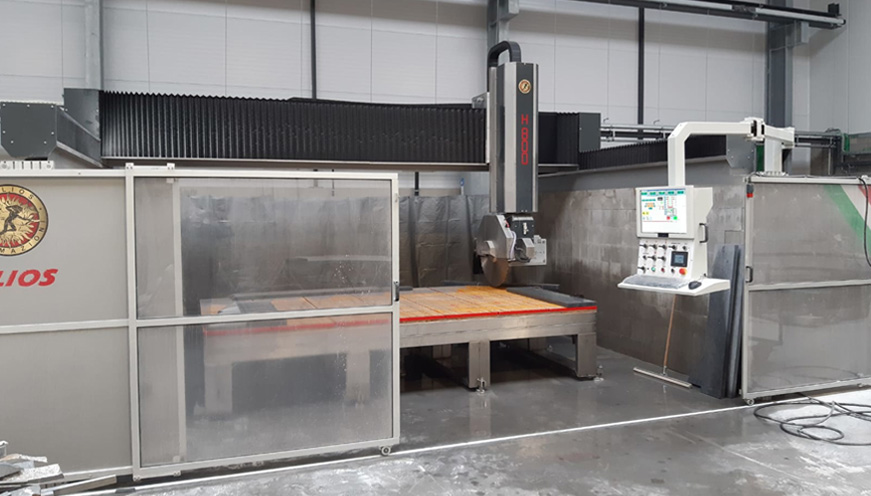

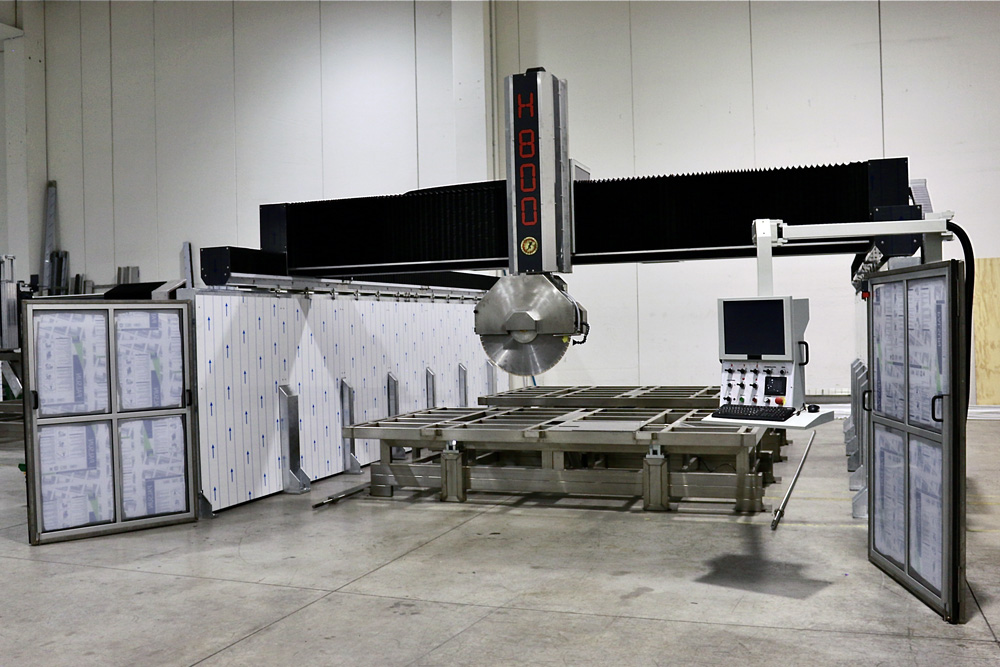

Helios H800 and H625 are 5-axis bridge saws, perfect for cutting large sizes and big thickness of stones. The bridge structure of the machines can be mounted on concrete or on galvanized carpentry structure, according to customer’s needs. The saws can be equipped with a tilting table, which allows the easy loading of the pieces and the Photoscan system, which is helpful for an interactive use of the machine. The Photoscan is a slabs scanner, a measuring system, and a template reader, which allows to start the cutting process just a click away. This series of bridge saws is very strong, performing, and precise.

Possible machining


• Extreme precise cuts of slabs with different size and thickness.

• Fabrication of bath and kitchen countertops, coverings and decorative walls.

• Artistic works on stone and porcelain materials.


Stainless steel structure The sturdy stainless-steel structure ensures stability and resistance to corrosion, preserving its qualities and performances over the time.
Stainless-steel working table The stainless-steel table ensures a stable, durable and perfect surface to work all materials on.
Big working area The machine can work different size pieces on 153,54 in x 118,11 in.
Z-Axis stroke 22,83 in z-axis stroke allows 3D works with extremely accurate details.

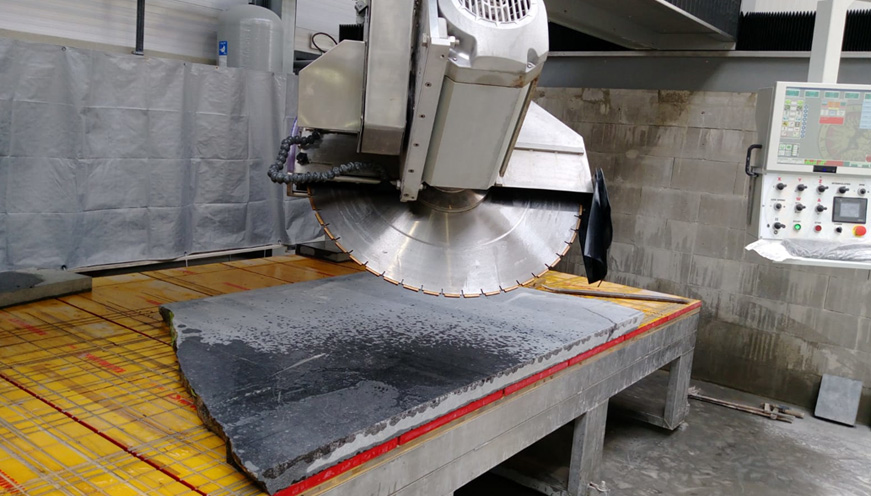

Cutting versatility H 800 works with discs on marble, granite, quartz and ceramics, as well as with tools thanks to the second electro-spindle option.
Brushless motors The advanced electronics of the brushless motors ensure stable and reliable performances.
Precision mechanics Thanks to the recirculating ball screws and to the harmonic-drive gearboxes, the movements of the machine are fluid and precise.
Run-Touch software The intuitive Run-Touch software makes the use of the machine simple and programming accessible even to less skilled operators.
Full warranty The machine is covered by a 2-year full warranty, which makes you work carefree and safe.
H 800 H 625
Working area X153,54 - Y118,11 - Z22,83 in X131,88 - Y94,48 - Z22,83 in
W axis rotation 0° ÷ 360° 0° ÷ 360°
A axis rotation 90° ÷ -45° 90° ÷ -45°
Disc motor power 23 kW - 31Hp 11,8 kW
Disc motor rotation speed 0 ÷ 4500 rpm 0 ÷ 4500 rpm
Installed power 30 kW 18 kW
Power supply 400 V (3P + N + GND) 50/60 Hz 400 V (3P + N + GND) 50/60 Hz
Max. speed axis X 1181,10 in/min 1181,10 in/min
Max. speed axis Y 787,40 in/min 787,40 in/min
Max. speed axis Z 393,70 in/min 393,70 in/min
Table dimensions X137,79 - Y78,74in X129,92 - Y78,74 in
Disk diameter min. 15,74in - max.31,49in min. 15,74in - max.24,60in
Disk hole diameter 2,36 in 1,96 in
TILTING TABLE
The tilting table allows the slabs to be loaded easily, without any effort. It is composed of a control unit and hydraulic piston.

PHOTOSCAN
The Photoscan system by Helios Automazioni is an innovative solution designed to integrate the 5-axis Helios bridge saws. The Photoscan is an advanced camera that performs a very important function in the processing of marble slabs and other materials. This device allows the acquisition of high-definition images of the slabs, thus helping in the process of positioning of the drawings/templates and in the precise cutting.



WATCH THE H 800 PLAYLIST
