HeliosJet

Waterjet CNC

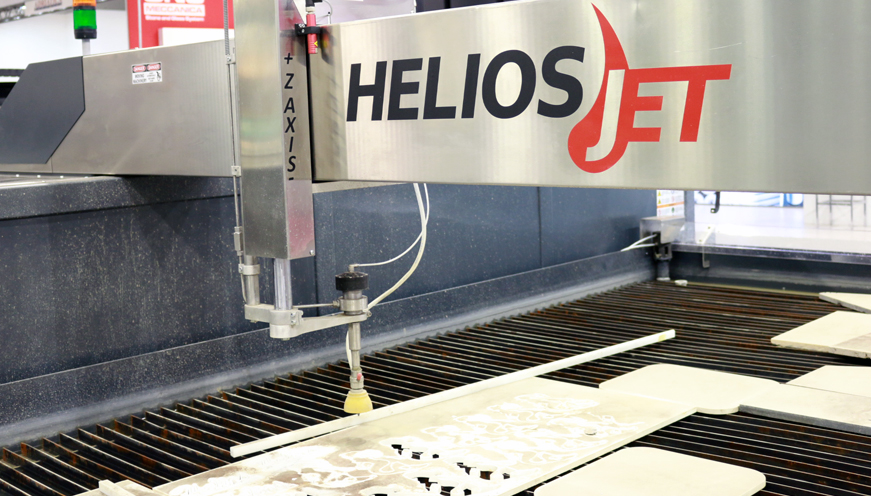

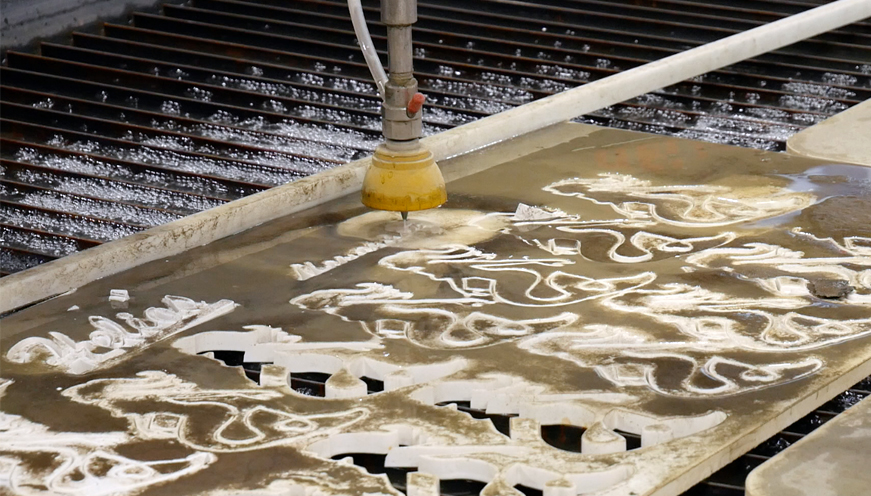

Helios Jet is a fast and performing 3/5 interpolated axes waterjet saw. It has been developed for high precision cutting processes on porcelain, compact surfaces, quartz, as well as marbles and granites. It is the essential waterjet that gives you the fundamental versatility of waterjet cutting. Engineered with the same technology as the other Helios cutting solutions, the Helios Jet features robust cutting capabilities and user-friendly software for added flexibility.



HeliosJet
Overall dimensions 255,90 x 137,79 x H98,42 in
Working area X141,73 - Y82,67 - Z6,69 in
Electrical power 32 kW
Power supply 400 V
Supply frequency 50/60 Hz
Max. pump pressure 3800 bar
Weight ~ 7716,17 lb
Max. feed rate - Cutting 8 m/min
Accuracy ±0.0254 mm
Max. Platform holding capacity 500 kg/m2
Max. sheet thickness 3,93 in
Nozzle diameter 0,04 in

Inlay
Jali
